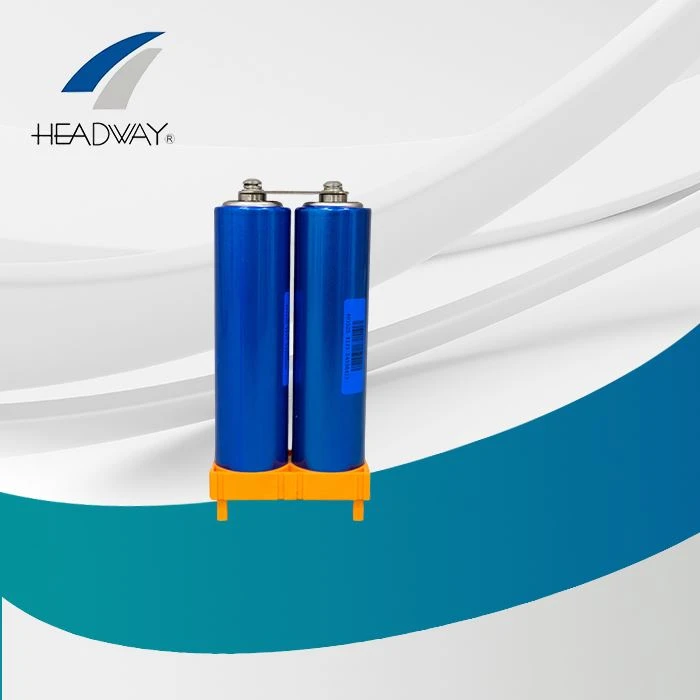

Lithium Ferro Phosphate Lfp roj teeb

Qhov kev qhia tshwj xeeb no piav qhia txog hom thiab qhov loj me, kev ua haujlwm, cov yam ntxwv, kev ceeb toom thiab ceev faj ntawm lithium ion rechargeable cell. Qhov tshwj xeeb tsuas yog siv rau HW 38120S cell muab los ntawm Zhejiang Xinghai Zog Technology Co., Ltd.





Rated muaj peev xwm:

Rated peev {{0}}Ah, lub peev xwm tau txais thaum lub xov tooj ntawm tes tawm ntawm 2- teev tus nqi rau qhov hluav taws xob 2.0 V ntawm 25 ± 2.5 OC.

Txheem tus nqi txoj kev:

Ntawm 25 ± 2.5 OC, them rau 3.65V ntawm qhov tam sim no ntawm 0.5C, thiab tom qab ntawd, them nrog qhov hluav taws xob tas li ntawm 3.65V kom txog thaum cov nqi them tam sim no poob qis dua 0.01C.

Txheem tso tawm txoj kev:

Ntawm 25 ± 2.5 OC, tawm mus rau 2.5 V ntawm qhov tam sim no ntawm 1C.

Cell hom, bar code, tshwm sim, thiab qhov ntev

Cell hom:HWV 38120S

Cell bar code thiab tshwm sim

Cell qhov ntev:



Yam khoom	SPECIFICATION
Nominal muaj peev xwm	10Ah @ 0.5C
Yam tsawg kawg nkaus	9.5Ah @ 0.5C
Nominal voltage	3.2V
Max Charging voltage	3.65 ±0.05 V
Tshem tawm qhov kawg voltage	2.5 ±0.05 V
Charge tam sim no	Tus nqi them tus nqi: 0.5C Max them: 2C thaum T Ntau dua lossis sib npaug rau 10 OC Max nqi: 1C thaum 10 OC Ntau dua lossis sib npaug rau T Ntau dua lossis sib npaug rau 0 OC Max nqi: {{0}}.1C thaum 0 OC Ntau dua lossis sib npaug rau T Ntau dua lossis sib npaug rau -10 OC
Tshem tawm tam sim no	Txheem paug: 1C Max tso tawm: 3C Max tam sim no tawm: 6C
Pom zoo kom them thiab tso tawm cell saum npoo kub	Nqe: 0-45 OC Discharge: -20-60 OC
Maximum tso cai them nqi thiab tso tawm cell saum npoo kub. Charge thiab tso tawm ntawm cov xwm txheej no yuav ua rau lub neej voj voog ntawm tes luv luv.	Nqe: 60 OC Tawm tawm: 75 OC
Humidity ntau	0-90 feem pua ​​RH (tsis muaj condensing)
Sab hauv tsis kam	Tsawg dua lossis sib npaug rau 4mOhm (AC Impedance, 1000HZ)
Cell dimension	Qhov siab: 136mm Max Txoj kab uas hla: 38.5mm Max
Qhov hnyav	330±5 g



Kev ua haujlwm hauv hluav taws xob (cov xovtooj tshiab tau sim ntawm 25 ± 2.5OC, tus qauv them nqi thiab tso tawm tshwj tsis yog tau teev tseg)







Txhawm rau tiv thaiv qhov tshwm sim ntawm lub xov tooj ntawm tes los ntawm kev xau, cua sov, tawg, thov ua raws li kev ceev faj hauv qab no:

Tsis txhob muab lub cell rau hauv dej;

Tsis txhob siv thiab tawm ntawm lub xovtooj ze ntawm qhov chaw kub xws li hluav taws kub lossis lub rhaub; Thaum them nyiaj, siv lub xov tooj ntawm tes tshwj xeeb rau lub hom phiaj ntawd; Tsis txhob thim rov qab qhov zoo thiab tsis zoo terminals;

Tsis txhob muab lub xovtooj pov tseg rau hauv hluav taws lossis lub rhaub;

Tsis txhob txuas lub xov tooj mus rau lub qhov hluav taws xob ncaj qha; Tsis txhob muab lub xovtooj pov tseg rau hauv hluav taws lossis lub rhaub;

Tsis txhob txuas qhov zoo thiab qhov tsis zoo ntawm lub davhlau ya nyob twg ncaj qha nrog cov khoom siv hlau;

Tsis txhob thauj thiab khaws cov cell ua ke nrog cov khoom siv hlau xws li necklaces, hairpins; Tsis txhob ncaj qha solder lub cell;

Tsis txhob tho lub xovtooj nrog tus ntsia thawv lossis lwm yam khoom ntse;

Tsis txhob tawm ntawm lub xovtooj nrog qis SOC rau lub sijhawm ntev, nws yuav tsum khaws cov xovtooj ntawm ib ncig ntawm 50 feem pua ​​​​rau lub sijhawm ntev (tsawg dua 6 lub hlis). Yuav tsum them lub xov tooj mus rau 50 feem pua ​​SOC tom qab txhua 6 lub hlis.



Thaum lub sijhawm thauj mus los, khaws lub roj teeb kom tsis txhob muaj kev vibration, cuam tshuam, polarization, drenching.





Vim li cas thiaj xaiv peb?

• Peb yog cov chaw tsim khoom thiab chaw tsim khoom ntawm Lithium Iron Phosphate Roj teeb khoom.
• Peb lub tuam txhab tawm tswv yim txog kev coj noj coj ua ntawm 'kev tsom mus rau kev tsim khoom, kev ua haujlwm zoo thiab kev pabcuam tag nrho' thiab ua raws li kev lag luam lub tswv yim ntawm 'cov khoom lag luam ib txwm pheej yig, zoo dua' thiab nco ntsoov nco ntsoov tias cov neeg siv khoom txaus siab yog peb lub hom phiaj kawg.
• Peb lub siab nyiam rau Lithium Iron Phosphate Roj teeb cov khoom lag luam qhia hauv txhua yam peb ua.
• Qhov kev ua tau zoo ntawm peb lithium Ferro Phosphate Lfp Roj teeb yog qhov tsis sib xws, thiab nws daws tau tag nrho cov teeb meem ntawm kev ua haujlwm siab, kev ua haujlwm tsis zoo thiab kev pabcuam tomqab muag nyuaj hauv kev ua haujlwm ntawm cov khoom lag luam ib txwm muaj.
• Peb cov khoom siv roj teeb lithium Iron Phosphate yog tsim los ua kom tau raws li qhov xav tau ntawm ntau yam kev lag luam.
• Peb lub tuam txhab Lithium Ferro Phosphate Lfp Roj teeb tsis tsuas yog muaj lub sijhawm teb luv luv, tab sis kuj muaj cov ntaub ntawv hloov tshiab thiab cov ntaub ntawv ruaj khov.
• Peb siv zog ua kom dhau peb cov neeg siv khoom xav tau nrog peb Lithium Iron Phosphate Battery khoom thiab cov kev pabcuam.
• Lub tuam txhab tau cog lus rau kev pabcuam cov neeg siv khoom, pab txhawb kev nce qib hauv zej zog, muab cov neeg siv khoom muaj txiaj ntsig rau cov kev pabcuam nyiaj txiag, thiab thaum kawg yeej qhuas. Nyob hauv tsev neeg sov siab no, peb tuaj yeem txhim kho peb lub peev xwm, kawm los ntawm ib leeg, ua neej nyob thiab ua haujlwm zoo siab, thiab sib koom ua lag luam niaj hnub zoo.
• Tag nrho peb cov khoom siv roj teeb Lithium Iron Phosphate yog ib puag ncig tus phooj ywg thiab ruaj khov.
• Peb lub tuam txhab ua raws li cov neeg-taw qhia txoj cai, txuas ntxiv muab cov neeg siv khoom nrog cov khoom zoo tshiab, thiab ua tus thawj coj hauv kev lag luam nrog cov kev pabcuam zoo meej. Peb muaj kev ntseeg siab los ntawm cov neeg siv khoom thiab txaus siab rau kev ncaj ncees rau pej xeem.

Taw qhia:

Peb txaus siab los qhia peb cov khoom zoo tshaj plaws Lithium Ferro Phosphate (LFP) roj teeb, tsim kom tau raws li qhov xav tau ntawm cov cuab yeej siv niaj hnub no. Peb lub roj teeb LFP yog lub zog muaj peev xwm loj uas muab kev ua haujlwm tshwj xeeb thiab kev ntseeg siab rau ntau yam kev siv. Txawm hais tias koj xav tau lub zog hluav taws xob rau lub tsheb fais fab, lub hnub ci zog, lossis cov khoom siv nqa tau, peb lub roj teeb LFP yog qhov kev daws teeb meem zoo tshaj plaws.



Cov yam ntxwv tseem ceeb ntawm Peb Lithium Ferro Phosphate LFP roj teeb:



1. High Energy Density: Peb Lithium Ferro Phosphate (LFP) roj teeb yog tsim los muab lub zog siab tshaj plaws, uas txhais tau hais tias nws tuaj yeem khaws ntau lub zog hauv qhov chaw me me. Qhov no ua rau nws lub zog zoo tshaj plaws rau cov khoom siv nqa tau zoo li lub tsheb hluav taws xob.



2. Lub neej ntev: Peb lub roj teeb LFP muaj lub neej zoo txog li 3000 lub voj voog. Qhov no txhais tau hais tias koj tuaj yeem siv tau ntau xyoo yam tsis tas yuav hloov pauv, ua kom muaj txiaj ntsig zoo nyob rau lub sijhawm ntev.



3. Them sai sai: Lub roj teeb LFP tuaj yeem them sai sai, ua tsaug rau nws qhov tsis kam sab hauv. Nws tsuas yog siv ob peb teev kom them lub roj teeb tag nrho, ua rau nws yooj yim heev rau cov neeg siv.



4. Kev khiav hauj lwm qhov kub thiab txias: Peb lub roj teeb LFP tuaj yeem ua haujlwm tau zoo txawm tias qhov kub thiab txias xws li -20 degree txog 60 degree . Qhov no txhais tau tias nws tuaj yeem siv rau ntau qhov chaw ib puag ncig yam tsis muaj kev cuam tshuam kev ua haujlwm.



5. Muaj kev nyab xeeb thiab ntseeg tau: Peb lub roj teeb LFP yog tsim los nrog kev nyab xeeb hauv siab. Nws muaj cov yam ntxwv kev nyab xeeb siab tshaj xws li kev tiv thaiv overcharge, kev tiv thaiv tshaj tawm, thiab kev tiv thaiv luv luv. Qhov no ua kom ntseeg tau tias lub roj teeb tseem muaj kev nyab xeeb thiab txhim khu kev qha thoob plaws nws lub neej.



Daim ntawv thov ntawm Peb Lithium Ferro Phosphate LFP roj teeb:



1. Lub Tsheb Hluav Taws Xob: Peb lub roj teeb LFP yog lub zog zoo tshaj plaws rau lub tsheb fais fab, xws li tsheb fais fab, hluav taws xob maus taus, thiab tsheb kauj vab hluav taws xob. Nws muab kev ua hluav taws xob siab, lub neej ntev ntev, thiab them nyiaj nrawm, ua rau nws muaj kev daws teeb meem zoo tag nrho rau kev lag luam automotive.



2. Solar Energy Systems: Peb lub roj teeb LFP yog qhov kev xaiv zoo tshaj plaws rau lub hnub ci zog, vim nws tuaj yeem khaws ntau lub zog tsim los ntawm lub hnub ci vaj huam sib luag, uas tuaj yeem siv tom qab thaum xav tau. Lub roj teeb LFP muab tus nqi zoo thiab muaj txiaj ntsig ntawm kev khaws cia lub zog tauj dua tshiab.



3. Portable Devices: Peb lub roj teeb LFP zoo meej rau cov khoom siv nqa tau xws li laptops, smartphones, thiab ntsiav tshuaj. Nws muab kev ua hluav taws xob siab, them nyiaj ceev, lub neej ntev, ua rau nws muaj peev xwm txhim khu kev qha thiab yooj yim rau cov neeg siv ntawm kev mus.



Xaus:

Hauv kev xaus, peb lithium Ferro Phosphate (LFP) roj teeb yog lub zog zoo uas muab kev ua haujlwm tshwj xeeb thiab kev ntseeg siab rau ntau yam kev siv. Nws muaj lub zog ceev ceev, lub neej ntev mus ntev, them ceev ceev, thiab cov yam ntxwv muaj kev nyab xeeb siab heev. Peb lub roj teeb LFP tuaj yeem siv rau hauv tsheb fais fab, lub hnub ci zog, thiab cov khoom siv nqa tau yooj yim, ua rau nws muaj ntau yam khoom siv thiab muaj txiaj ntsig. Peb ntseeg siab tias peb lub roj teeb LFP yuav ua tau raws li qhov xav tau ntawm peb cov neeg siv khoom thiab tshaj qhov lawv xav tau.
