LiFePO4 51.2V60Ah rau Tsev Zog Cia
|
Cov yam ntxwv ntawm LiFePO4Roj teeb |
Cov duab khoom |
||||||||
|
Longer Cycle Life:Muaj txog li 10 npaug ntawm lub voj voog lub neej ntev dua thiab 5 lub sij hawm ntev ntab / daim ntawv qhia hnub lub neej tshaj li cov roj teeb txhuas, pab rau txo tus nqi hloov pauv thiab txo tus nqi tag nrho ntawm cov tswv cuab. |
|
||||||||
|
Lub Zog:Kwv yees li 40 feem pua ntawm qhov hnyav ntawm qhov sib piv lead acid roj teeb, "poob hauv" hloov rau cov roj teeb kua qaub. |
|||||||||
|
Siab zog:Muab ob zaug lub zog ntawm cov roj ntsha lead acid, txawm tias muaj tus nqi tso tawm siab, thaum tuav lub zog siab. |
|||||||||
|
Wider Temperature Range: -10 degree ~ 55 degree . |
|||||||||
|
Superior Safety:Lithium hlau phosphate chemistry tshem tawm qhov kev pheej hmoo ntawm kev tawg lossis tawg vim muaj kev cuam tshuam loj, dhau kev them nqi lossis luv luv Circuit Court. |
|||||||||
|
Tsis muaj Memory Effect:Txhawb nqa tsis ruaj tsis khov ib feem ntawm lub xeev them nqi (UPSOC) (them / tso tawm) siv. |

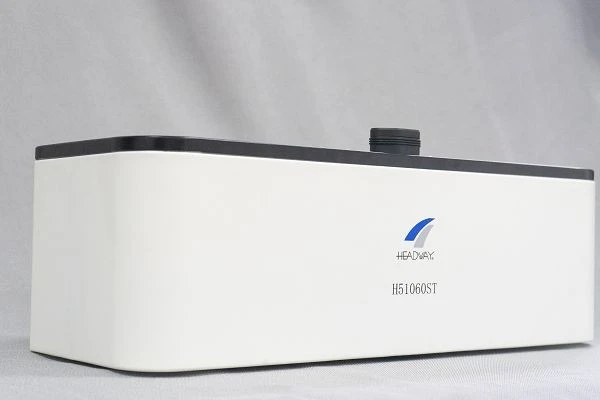

HXX60ST |
||||||||
|
Cov duab sib txawv me ntsis ntawm cov khoom tiag, thov coj cov khoom tiag raws li tus qauv. |
|||||||||
|
Muaj nuj nqi ntawm roj teeb |
Kev tsim nyog |
||||||||
|
OVP, UVP, OTP, OCP, SCP. |
20 xyoo kev ua haujlwm ntawm lithium ion roj teeb lub zog tsim, tsim khoom, muag |
||||||||
|
Kev tswj tus kheej ntsuas qhov muaj nuj nqi.on them thiab tso tawm, ib lub xov tooj ntawm tes |
|||||||||
|
Dhau ISO9001, ISO14001, ISO45001, UL1642, CE, ROHS, IEC62619, IEC62620, UN38.3 |
|||||||||
|
Txhawb RS485/CAN. kev sib txuas lus nrog mainstream inverters tshaj |
|||||||||
|
Roj teeb cell nqi kom zoo dua |
|||||||||
|
Tsim kev txawj ntse, txhawb roj teeb hloov dua siab tshiab dua wifi |
|||||||||
Qauv: HXX060ST
|
Cov ntaub ntawv dav dav |
||||||||
|
Roj teeb Module |
H51060ST (3.072kWh, 51.2V, 30kg) |
|||||||
|
Tus naj npawb ntawm Modules |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Zog (kWh) |
9.21 |
12.28 |
15.36 |
18.43 |
21.50 |
24.57 |
27.64 |
30.72 |
|
Siv tau zog (kWh) |
8.29 |
11.05 |
13.82 |
16.58 |
19.35 |
22.11 |
24.87 |
27.64 |
|
Nominal voltage （V） |
153.6 |
204.8 |
256 |
307.2 |
358.4 |
409.6 |
460.8 |
512 |
|
Kev khiav hauj lwm voltage (V) |
141.6-170.4 |
188.8-227.2 |
236-284 |
283.2-340.8 |
330.4-397.6 |
377.6-454.4 |
424.8-511.2 |
472-568 |
|
Dimension (W * D * H) hli |
600*220*807 |
600*220*997 |
600*220*1187 |
600*220*1377 |
600*220*1567 |
600*220*1757 |
600*220*1947 |
600*220*2137 |
|
Qhov hnyav (kg) |
94 |
124 |
154 |
184 |
214 |
244 |
274 |
304 |
|
Standard Charge / Discharge Tam sim no |
15A/30A |
|||||||
|
Max Charge / tso tawm Tam sim no |
30A/60A |
|||||||
|
Lub neej voj voog |
Ntau dua lossis sib npaug rau 5000 cycles @ 70 feem pua DOD |
|||||||
|
Tsim Lub Neej |
Ntau dua lossis sib npaug li 10 xyoo @ 25 degree |
|||||||
|
Kev Tso Tawm Tus Kheej (30 hnub) |
Tsawg dua lossis sib npaug li 5 feem pua @ 25 degree |
|||||||
|
Efficiency ntawm Charge |
Ntau dua lossis sib npaug li 98 feem pua |
|||||||
|
Efficiency ntawm kev tso tawm |
Greater than or equal to 100 percent @0.2C |
|||||||
|
Greater than or equal to 96 percent @0.5C |
||||||||
|
Charge hom |
{{0}}.2C rau N*56.8V, ces N*56.8V them tam sim no rau 0.02C (CC/CV) |
|||||||
|
Tshem Tawm Tawm Tawm Voltage |
Tsawg dua lossis sib npaug N * 47.2V |
|||||||
|
Dej Dust Resistance |
IP54 |
|||||||
|
Case |
Hlau (Insulation painting) |
|||||||
|
LCD |
Qhia tag nrho cov pob hluav taws xob, hluav taws xob ntawm tes, kub, BMS xwm txheej, thiab lwm yam |
|||||||
|
Kev sib txuas lus |
RS485/CAN |
|||||||
|
Wifi |
||||||||
|
Kev ua haujlwm ib puag ncig |
||||||||
|
Charge Temperature Range |
0 degree ~ 45 degree |
|||||||
|
Tshem tawm qhov kub thiab txias |
-10 degree ~ 55 degree |
|||||||
|
Optimum Ua Haujlwm Kub |
10 degree ~ 35 degree |
|||||||
|
Cia Kub |
-10 degree ~ 35 degree |
|||||||
|
Tsawg dua los yog sib npaug li 85 feem pua Relative Humidity |
||||||||
Vim li cas thiaj xaiv peb?
- Peb cov khoom siv roj teeb lithium Ion yog tsim nyob rau hauv ib qho chaw huv thiab ib puag ncig zoo.
- Peb sib zog ua kom muaj kev lag luam zoo thiab txhim khu kev lag luam tseem ceeb ntawm kev lag luam.
- Peb lub tuam txhab yog cov chaw tsim khoom thiab cov chaw muag khoom nrog cov nqi sib tw.
- Raws li txoj kev tswj hwm nruj thiab nruj, nrog rau kev siv cov khoom siv siab heev, kev tswj hwm thiab kev sim tshuab, peb lub tuam txhab tau ua tiav qhov sib xws hauv txhua yam khoom lag luam ywj pheej.
- Peb cov khoom siv roj teeb lithium Ion yog tsim los ua tus phooj ywg ib puag ncig thiab txhawb kev txhim kho kom ruaj khov.
- Peb tau ntxiv dag zog rau cov khoom tiav kev soj ntsuam mechanism, thiab peb cov khoom raug sim nyob rau hauv txhua yam los ntawm cov neeg ua hauj lwm tshwj xeeb los xyuas kom meej tias txhua kauj ruam yog nruj me ntsis tswj.
- Peb lub Hoobkas muaj ib pab neeg ntawm cov kws tshaj lij uas tau mob siab rau kom ntseeg tau cov neeg siv khoom txaus siab.
- Peb qhia cov txiv hmab txiv ntoo ntawm kev txhim kho kev lag luam, thiab paub txog kev loj hlob ntawm cov neeg ua haujlwm thiab lub tuam txhab.
- Peb tau cog lus tias yuav muab cov khoom lag luam lithium Ion roj teeb muaj kev nyab xeeb thiab txhim khu kev qha uas ua raws li cov kev cai thoob ntiaj teb.
- Raws li kev lag luam 80v Lithium roj teeb, peb ua tib zoo sib xyaw cov tswv yim kev lag luam niaj hnub thiab cov tswv yim nrog kev txhim kho ntawm lub tuam txhab.
Qhia txog 80v Lithium Roj teeb - Lub Hwj Chim los txhawb koj lub lag luam
Puas yog koj tab tom nrhiav kev txhim khu kev qha thiab ua haujlwm siab lithium roj teeb uas tuaj yeem ua tau raws li qhov xav tau ntawm lub zog loj ntawm koj lub lag luam? Saib tsis pub dhau 80v Lithium Roj teeb - qhov kev daws teeb meem zoo tshaj plaws rau kev siv hluav taws xob tag nrho koj cov khoom siv.
Ua nrog cov ntaub ntawv zoo tshaj plaws thiab tsim kom muaj kev ua haujlwm siab tshaj plaws, peb cov roj teeb lithium yog kev sib xyaw ua ke zoo tshaj plaws ntawm lub zog thiab kav ntev. Txawm hais tias koj xav tau lub zog hluav taws xob tsheb, cov tshuab ua haujlwm, lossis lub hnub ci hauv tsev, peb cov roj teeb lithium tuaj yeem muab lub zog koj xav tau, thaum koj xav tau.
Nov yog qee qhov tseem ceeb uas ua rau 80v Lithium Battery yog qhov kev xaiv zoo tshaj plaws rau koj txoj kev lag luam:
1. Siab zog ceev
Peb lub cev roj teeb lithium muaj lub zog ntom ntom uas yog 30 feem pua siab dua li ntawm cov roj teeb ua kua-acid. Qhov no txhais tau hais tias koj tuaj yeem khaws ntau lub zog hauv lub pob me me thiab sib dua, ua kom yooj yim rau kev thauj thiab nruab. Thiab nrog nws qhov loj me me, peb lub roj teeb lithium siv qhov chaw tsawg dua rau tib lub zog, uas tuaj yeem muaj txiaj ntsig tshwj xeeb rau cov lag luam uas tsis muaj vaj tse.
2. Lub neej ntev
Peb 80v Lithium roj teeb yog tsim los kom kav ntev li peb mus rau plaub lub sij hawm ntev dua li cov roj teeb txhuas-acid. Qhov no yog vim nws cov chemistry zoo tshaj thiab kev tsim kho tshiab, uas txo qis hnav thiab tsim kua muag ntawm lub roj teeb lub sijhawm. Koj yuav tsis tas yuav hloov peb cov roj teeb lithium ntau npaum li lwm cov roj teeb, uas yuav pab koj txuag nyiaj ntawm cov nqi tu thiab sijhawm poob.
3. Ceev ceev
Peb lub roj teeb lithium muaj peev xwm them txog 50 feem pua ntau dua li lwm cov roj teeb, uas txhais tau tias koj tuaj yeem siv sijhawm tsawg dua rau nws kom them thiab siv sijhawm ntau dua. Qhov no yog qhov tshwj xeeb tshaj yog rau cov lag luam uas yuav tsum tau them sai sai rau lawv cov khoom siv, xws li cov tuam txhab logistics khiav tsheb thauj khoom.
4. Muaj kev nyab xeeb thiab ntseeg tau
Peb lub roj teeb lithium yog tsim los nrog cov yam ntxwv muaj kev nyab xeeb los xyuas kom meej tias nws ua haujlwm nyab xeeb thiab ntseeg siab nyob rau hauv txhua yam kev mob. Nws yog txawm peem rau nrog advanced tiv thaiv circuits uas tiv thaiv overcharging, overheating, thiab lwm yam kev phom sij uas yuav ua rau lub roj teeb tsis ua hauj lwm. Ntxiv rau, peb cov roj teeb lithium muaj kev ruaj ntseg siab thiab tuaj yeem tiv taus qhov kub thiab txias, ua rau nws yog qhov kev xaiv zoo rau kev lag luam kev lag luam hauv huab cua.
5. Ib puag ncig phooj ywg
Peb 80v Lithium roj teeb yog ib puag ncig zoo dua li cov roj teeb txhuas-acid. Nws tsis muaj cov tshuaj lom, thiab nws tsim cov khoom pov tseg tsawg dua thaum lub sijhawm tsim khoom. Ntxiv rau, nws tuaj yeem siv tau yooj yim dua thaum kawg ntawm nws lub neej muaj txiaj ntsig, uas pab txo qis kev cuam tshuam ib puag ncig ntawm koj txoj haujlwm ua lag luam.
6. Nqi-zoo
Peb lub roj teeb lithium yog kim dua li cov roj teeb txhuas-acid ib txwm, tab sis nws yog tus nqi ntau dua rau nws lub neej vim nws lub neej ntev thiab muaj zog ceev. Koj yuav txuag tau nyiaj ntawm cov nqi kho mob, cov nqi hloov pauv, thiab cov nqi hluav taws xob nyob rau lub sijhawm, ua rau nws muaj txiaj ntsig zoo rau koj txoj kev lag luam.
Hauv kev xaus, 80v Lithium Battery yog qhov kev daws teeb meem zoo tshaj plaws rau cov lag luam uas xav tau cov roj teeb uas muaj kev ntseeg siab, ua haujlwm siab. Nrog nws lub zog siab ceev, lub neej ntev, kev them nyiaj ceev, kev nyab xeeb nta, thiab kev phooj ywg ib puag ncig, nws yog qhov kev xaiv zoo tshaj plaws rau kev siv zog rau tag nrho koj cov cuab yeej. Tiv tauj peb hnub no kom paub ntau ntxiv txog yuav ua li cas 80v Lithium Battery tuaj yeem txhawb koj txoj kev lag luam mus tom ntej.
